What is a DC generator?
 |
| What is a DC generator? |
A DC generator is also known as a DC dynamo or DC machine.it is an electrical machine that converts mechanical energy into electrical energy. It works based on the principle of Faraday's law of electromagnetic induction. it states that when a conductor is moved in a magnetic field, an EMF is induced across the conductor.
Working Principle Of DC Generator
When the rotor is rotated by a prime mover the conductors in the armature windings cut through the magnetic field. The magnetic field is created by the field windings in the stator. This induces an EMF in the armature windings. The DC output from the generator can be used to power electrical loads.
As the armature rotates, the magnetic flux linked with it changes. According to Faraday's Law of Electromagnetic Induction, a changing magnetic flux induces an electromotive force (EMF) in the conductor. This induced EMF is the voltage of the generator. The induced EMF causes a current to flow in the armature winding. The direction of this current changes periodically due to the rotation of the armature. The commutator ensures that the output current flows in one direction only.
The brushes are in contact with the rotating commutator. it collects the direct current from the armature and supplies it to the external circuit.
 |
| What is a DC generator? |
Dc Generator Cycle
DC Generator Parts
- Stator
- Rotor
- Yoke or Body
- Field Winding
- Armature
- Commutating Poles or interpoles
- Commutator
- Pole Shoe
- Compensating Field winding
- Dc Armature Winding
- Brushes
- Bearings
- Terminal box
Stator of DC generator
The stator is the stationary part of the DC generator that provides a magnetic field for the generator. It is made up of a laminated magnetic core that is wound with field coils. The field coils are made of copper wires.
 |
| What is a DC generator? |
Rotor Of DC Generator
 |
| What is a DC generator? |
Yoke or Body of DC Generator
The yoke or body is a major part of a DC generator that provides mechanical support. it serves as a housing for the stator core and field windings.
it is usually made of cast iron or steel. yoke provides a path for the magnetic flux to flow through the stator core.
 |
| What is a DC generator? |
The yoke is designed to be a strong and rigid structure that can withstand the magnetic forces generated by the field windings.
Field Winding of DC Generator
The field winding is a coil of wire wound around a DC generator's stator core. It is used to create the magnetic field that is required for the generation of electrical power. The field winding can be either a series or shunt winding.
 |
| What is a DC generator? |
The wire is wound in a single coil around the stator core in a series of field winding. The ends of the coil are connected in series with the armature winding. When current flows through the series field winding, it produces a strong magnetic field proportional to the current flowing through the winding.
Armature of DC Generator
The armature is the rotating part of a DC generator. The armature consists of a iron core of laminated sheets, on which the armature winding is wound. The armature winding is a set of coils placed in slots around the circumference of the armature core.
 |
| What is a DC generator? |
When the armature is rotated within the magnetic field created by the field winding, an electromotive force (EMF) is induced in the armature winding. This induced EMF causes a flow of current to be generated in the armature winding.

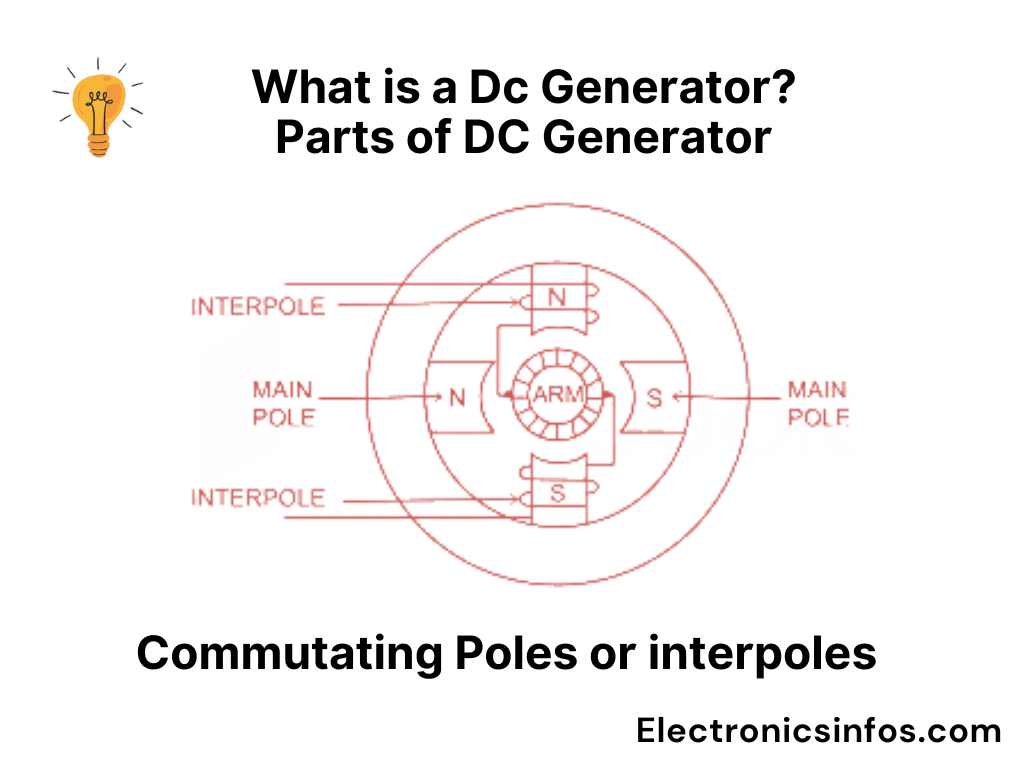

Commutating Poles or interpoles
Commutating poles, also known as inter poles, are small auxiliary poles that are installed between the main poles of a DC generator. They are used to improve the commutation process, which is the process of transferring the current from one armature coil to the next as the armature rotates.
 |
| What is a DC generator? |
The commutating poles are designed to produce a magnetic field that is opposite in direction to the magnetic field by the main poles. This helps to neutralize the magnetic field in the space between the main poles.
Commutator of DC Generator
The commutator is a rotating part of the DC generator that is connected to the armature winding. It consists of a series of copper segments that are separated by insulation. The commutator reverses the direction of the current flow in the armature winding as it rotates, which produces DC voltage and current.
 |
| What is a DC generator? |
A commutator is a component of DC generators. It is a cylindrical rotor with a set of contacts that are connected to the armature coils. The commutator is mounted on the rotating shaft of the machine and used to reverse the direction of current flow in the armature winding.
Pole Shoe of DC Generator
A pole shoe is part of a DC generator that is located at the end of each pole. It is usually made of laminated iron and is designed to increase the magnetic field strength in the air gap between the pole and the armature.
 |
| What is a DC generator? |
The pole shoe is shaped like a curved plate that wraps around the pole. it extends out towards the armature. The curved shape of the pole shoe helps to focus and direct the magnetic field towards the armature.
Compensating Field winding
The compensating field winding is connected in series with the armature winding and the series field winding. it is wound in the opposite direction to the series field winding.
Dc Armature Winding
DC armature winding is used in DC generators and motors to convert electrical energy to mechanical energy. The armature winding is made up of a series of coils that are wound on an iron core.
The armature winding is connected to the commutator that is connected to the armature coils. The armature winding is usually made up of two types of windings, a series winding and a shunt winding.
The series winding is connected in series with the armature and produces a strong magnetic field. when the generator is loaded. The shunt winding is connected in parallel with the armature and produces a weaker magnetic field that helps to regulate the voltage output of the generator.
Brushes
 |
| What is a DC generator? |
Bearings
 |
| What is a DC generator? |
Terminal box
EMF Equation of a DC Generator
- E = Induced EMF in volts
- P= Number of poles
- Phi = Magnetic flux per pole in Weber (Wb)
- Z = Total number of armature conductors
- N = Armature rotation speed in revolutions per minute (RPM)
- A = Number of parallel paths in the armature winding
Types of DC Generator
- Separately Excited DC Generator
- Self-Excited DC Generator
- Shunt Wound DC Generator
- Series Wound DC Generator
- Compound Wound DC Generator
- Short Shunt Compound DC Generator
- Long Shunt Compound DC Generator
Separately Excited DC Generator
Self-Excited DC Generator
Shunt Wound DC Generator
Series Wound DC Generator
Compound Wound DC Generator
Short Shunt Compound DC Generator
Long Shunt Compound DC Generator
Applications of DC Generator
- DC generators are used to charge batteries in automotive, marine, and off-grid solar systems.
- They provide backup power systems for critical infrastructure such as hospitals, data centres, telecommunications sector.
- DC generators are used in electric vehicles.
- DC generators power various systems in trains, including lighting, ventilation, signalling, and communication systems.
- They provide power for navigation equipment, lighting, communication systems, and other electrical systems on ships, boats, and offshore platforms.
- DC generators are used in remote telecommunications sites, such as cell towers and satellite communication stations.
- DC generators are used in industrial applications where DC power is required, such as electroplating, electrolysis, electrochemical processes, and metal processing.
- They provide temporary power at construction sites for tools, lighting, and other equipment.
- DC generators power communication systems, radar equipment, portable electronics, and field operations in military and defence applications.
Conclusion
Understanding DC generator operation, types, and applications helps in making decisions about their usage in various industries. Despite some limitations, DC generators' ability to provide direct current.
Faqs(Frequently Asked Questions)
What is a DC generator?
How does a DC generator work?
What are the main components of a DC generator?
- Armature: The rotating part that contains the coil.
- Field Winding: The stationary part that creates the magnetic field.
- Commutator: A mechanical switch that rectifies the current.
What is the difference between a separately excited and a self-excited DC generator?
- In a separately excited DC generator, the field winding is produced by an external DC source.
- In a self-excited DC generator, the field winding is connected to the armature winding, and the generator uses a residual magnetic field to energize the field winding.
What are the common losses in a DC generator?
- Copper losses (I²R losses in the armature and field windings)
- Core losses (hysteresis and eddy current losses in the armature core)
- Mechanical losses (friction and windage losses)
- Brush contact losses
What are the disadvantages of DC generators?
- It requires regular maintenance.
- DC generators are Generally less efficient than AC generators.
- It is Heavier and bulkier than AC generators of the same power rating.
Can a DC generator be used as a DC motor?
What is the role of a commutator in a DC generator?
What factors affect the output voltage of a DC generator?
- Field current (strength of the magnetic field)
- The rotational speed of the armature
- Number of turns in the armature winding
- Flux per pole (magnetic flux density)
