What is Plc Error?

PLC errors are a type of error that occurs in PLC controllers. These errors can arise due to various reasons such as hardware malfunctions, software programming errors, communication problems, power supply issues, environmental factors and external interference.

There are different types of errors that arise in PLC including

Types of  Plc Error

1. Hardware Errors
2. Communication Errors
3. Software Errors
4. Runtime Errors
5. Programming Errors
6. Environmental Errors
7. Human Errors

Hardware Errors

Hardware errors are physical malfunctions within the PLC. Common hardware errors include

• Power Supply Failures
• I/O Module Failures
• Processor Faults
• Communication Errors

Power Supply Failures

Power supply failures in PLC (Programmable Logic Controller) systems can occur for various reasons. Understanding these reasons and implementing appropriate solutions can help maintain the PLC systems.

Common Causes of Power Supply Failures in PLCs

Voltage Fluctuations and Surges

Voltage fluctuations or sudden surges can damage the power supply components.

Solution

Install surge protectors and voltage stabilizers to mitigate the effects of power surges.

Overloading

Connecting too many devices to the PLC power supply can exceed capacity. This leads to overheating and failure.

Solution

Ensure the total load connected to the PLC power supply is within its rated capacity.

Environmental Conditions

Extreme temperatures, humidity, dust, and other environmental factors can affect the power supply.

Solution

Install the PLC in a controlled environment with proper cooling and ventilation.

Ageing Components

Over time, components within the power supply can degrade and fail.

Solution

Implement regular maintenance schedules to inspect and replace ageing components before they fail.

Electrical Noise and Interference

Electrical noise from nearby machinery or other sources can interfere with the PLC power supply.

Solution

Use noise filters and shielded cables to reduce electrical interference.

Poor Wiring and Connections

Loose connections and poor wiring practices can lead to intermittent power supply issues.

Solution

Regularly inspect and tighten connections.

I/O Module Failures

I/O (Input/Output) module failures in PLC systems can lead to significant disruptions in automated processes.

These failures can stem from various causes, and addressing them requires a combination of preventive measures and troubleshooting techniques.

Common Causes of I/O Module Failures

Electrical Noise and Interference

Electrical noise from machinery, radio frequency interference (RFI), and electromagnetic interference (EMI) can disrupt I/O module signals.

Solution

• To reduce the Electrical Noise Use shielded cables and proper grounding techniques.
• Install noise filters and suppressors to minimize interference.

Environmental Factors

Harsh environmental conditions such as extreme temperatures, humidity, dust, and vibration can damage I/O modules.

Solution

Use enclosures to protect I/O modules from environmental factors.

Overloading and Short Circuits

Overloading the I/O module with too many devices or a short circuit can cause module failure.

Solution

Ensure the load connected to the I/O module is within its rated capacity.

Power Supply Issues

Fluctuations, surges, or interruptions in the power supply can affect I/O modules.

Solution

Install surge protectors and uninterruptible power supplies (UPS) to stabilize the power supply.

Poor Connections and Wiring

Loose, corroded, or damaged connections and wiring can lead to intermittent or complete failure of I/O modules.

Solution

Regularly inspect and maintain all connections and wiring. Use high-quality connectors and cables, and ensure all connections are secure.

Component Aging and Wear

Over time, components within the I/O module can degrade and fail due to ageing.

Solution

Implement a preventive maintenance schedule to replace ageing components before they fail.

Software and Configuration Errors

Incorrect software configurations or programming errors can cause I/O modules to malfunction.

Solution

Ensure proper programming and configuration of I/O modules. Regularly update and test software to identify and correct errors.

Processor Faults

Processor faults in PLC (Programmable Logic Controller) systems can cause significant disruptions to automated processes.  Understanding the common causes of processor faults and implementing effective solutions is crucial for maintaining the reliability of PLC systems.

Electrical Interference

Electrical noise, electromagnetic interference (EMI), and radio frequency interference (RFI) can disrupt the processor's operation.

Solution

Use shielded cables and proper grounding techniques.

Power Supply Issues

Fluctuations, surges, or interruptions in the power supply can cause the processor to malfunction.

Solution

Install surge protectors and uninterruptible power supplies (UPS) to provide a stable power source.

Software and Firmware Issues

Bugs in the software or firmware, incorrect configurations, and programming errors can lead to processor faults.

Solution

Regularly update the software and firmware to the latest versions.

Component Aging and Wear

Over time, the processor and its components can degrade and fail due to ageing.

Solution

Implement a preventive maintenance schedule to inspect and replace ageing components.

Overloading and Stress

Running the processor at or beyond its capacity, either through excessive I/O operations or complex computations, can cause faults.

Solution

Ensure the processor load is within its rated capacity.

Communication Errors

Communication errors in PLC (Programmable Logic Controller) systems can significantly impact performance.

These errors can occur for various reasons, including hardware issues, software problems, and environmental factors.

Understanding the common causes of communication errors and implementing effective solutions is crucial for maintaining the integrity of PLC systems.

Common Causes of Communication Errors in PLCs

Cable and Connection Issues

Damaged or loose cables and connectors can cause intermittent or complete communication failures.

Solution

Regularly inspect and replace damaged cables and connectors. Ensure all connections are secure and use high-quality cables suitable for the environment.

Configuration and Addressing Errors

Incorrect configuration settings, addressing errors, or mismatched communication parameters can lead to communication problems.

Solution

Verify and correct configuration settings, addresses, and communication parameters.

Hardware Failures

Faulty communication modules, ports, or network devices can cause communication errors.

Solution

Regularly test and replace faulty hardware components.

Software and Firmware Issues

Bugs in the software or firmware, outdated versions, and incompatibilities can lead to communication errors.

Keep software and firmware updated to the latest versions. Test updates thoroughly before deployment and ensure compatibility with other devices.

Network Overloading

Excessive network traffic or too many devices on the network can overwhelm the communication system.

Solution

Monitor network traffic and optimize communication protocols to reduce unnecessary load.

Protocol Mismatches

Incompatibility between communication protocols used by different devices can lead to errors.

Solution

Ensure all devices on the network use compatible communication protocols. Use protocol converters if necessary.

Software Errors

Software errors arise from issues within the PLC's programming or firmware. Common software errors include

• Programming Mistakes
• Firmware Bugs
• Configuration Errors

Programming Mistakes

Logical errors or incorrect instructions in the PLC program can lead to unexpected behaviour. There are different types of programming errors are occur in the PLC including

Incorrect Addressing

Example:

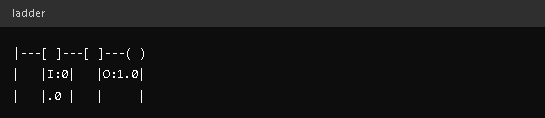

The intention might be to turn on O:0.0 when I:0.0 is true, but the address O:1.0 is used instead.

Logic Errors

Example:

The programmer intended to use OR logic but used AND logic, resulting in outputs O:0.0 and O:0.1 never being true simultaneously.

There are also many types of programming errors including

• Missing Documentation/Comments
• Ignoring Hardware Limits
• Improper Use of Latches/Seals
• Neglecting Scan Time
• Infinite Loops
• Incorrect Scaling of Analog Values
• Overlapping Memory Usage
• Improper Handling of Faults/Errors

Firmware Bugs

Bugs in the PLC’s firmware can cause instability or malfunction.

Configuration Errors

Incorrect configuration settings, such as wrong communication parameters or improper I/O mapping, can cause operational issues.

Runtime Errors

Runtime errors occur during the execution of the PLC program. Common runtime errors include:

• Overloads
• Watchdog Timer Errors
• Data Corruption Errors in Data Handling

Overloads

Excessive load on the PLC’s processing power or memory can lead to slow performance or crashes.

Watchdog Timer Errors

If the PLC program takes too long to execute, the watchdog timer may reset the PLC to prevent further issues.

Data Corruption Errors in data handling

such as buffer overflows or invalid data types, can disrupt operations.

Programming Errors

Programming errors are perhaps the most common and can be broken down into two types including

Syntax Errors

These occur when the code written does not follow the correct structure or rules of the programming language. This could be due to misspelt instructions or incorrect use of programming elements.

Logic Errors

These are mistakes in the way the logic is constructed within the program. This might include incorrect sequencing or logical inconsistencies that cause the PLC to behave unpredictably.

Environmental Errors

Environmental errors are caused by external factors affecting the PLC's operation. Common environmental errors include:

• EMI can disrupt the PLC's operation, especially if there are large motors or other sources of electrical noise nearby.
• Similar to EMI, RFI can affect the PLC's performance, often caused by antennas or handheld transmitters used close to the PLC.
• Temperature Extremes Operating outside the specified temperature range can cause the PLC to fail.
• EMI from nearby equipment can disrupt the PLC’s signals.
• Vibration and Shock Excessive vibration or physical shocks can damage the PLC or its components.
• Humidity and Moisture High humidity or moisture ingress can lead to short circuits or corrosion.

Human Errors

Human errors result from mistakes made by personnel interacting with the PLC system. Common human errors include:

• Incorrect Wiring can cause short circuits or incorrect signal interpretation.
• Neglecting regular maintenance can lead to accumulated dust, loose connections, or unaddressed wear and tear.
• Mishandling PLC components during installation or troubleshooting can cause damage.
• Incorrect settings or adjustments made by personnel can lead to system errors.
• Physical damage to the PLC or its components due to mishandling can cause failures.

Common Siemens PLC Error Codes

Siemens PLCs can generate various error codes to help diagnose and troubleshoot issues. These error codes typically appear on the PLC's display or within the associated software tools, such as STEP 7 or TIA Portal.

Below is a list of common Siemens PLC error codes and their meanings.

SF (System Fault)

it is a general fault in the system. There are many causes of this error including  Hardware failure, incorrect configuration, and severe software error. To Check the diagnostic buffer, inspect hardware, and review the configuration settings.

BF (Bus Fault)

This error occurs due to Disconnected or faulty communication cables, or incorrect network configuration. To resolve the BF Fault Verify connections, check network settings, and inspect the communication modules.

IF (Internal Fault)

Internal hardware fault within the CPU or modules.Module failure, overheating, or power supply issues.

EXTF (External Fault)

Fault detected by external devices connected to the PLC.Malfunctioning external sensors, actuators, or other connected devices. Inspect external devices, verify connections, and test functionality.

WDT (Watchdog Timer)

Program execution exceeded the allowed time limit. Inefficient program loops, high CPU load, or complex calculations lead to WDT errors.

IOF (Input/Output Fault)

Defective I/O modules, incorrect wiring, or configuration errors.

BATF (Battery Fault)

 Low battery or battery failure in the CPU.

MRES (Memory Reset Required)

Memory reset is required to clear faults or errors.

Diagnostic Tools and Procedures

• you can Use the diagnostic buffer in STEP 7 or the TIA Portal to view detailed error information and historical fault logs.
• Check the LED indicators on the CPU and modules for visual cues about the error type and location.
• Access detailed module information through the programming software.
• Perform both online and offline tests using Siemens software tools to isolate and diagnose faults.
• Schedule regular maintenance checks to inspect and test PLC hardware and connections.
• Ensure that the PLC operates within the recommended environmental conditions.
• Keep the PLC firmware up to date with the latest versions and patches.
• Provide comprehensive training for personnel on PLC programming, and maintenance.

Conclusion

There are many types of errors are occur in PLC machines. To ensure the best operation of plc machines we must ensure to inspect regularly.

Faqs(Frequently Asked Questions)

What are common types of PLC errors?

Common PLC errors include

• communication errors,
• I/O errors,
• CPU faults,
• memory errors,
• program errors,
• and power supply issues.

What causes communication errors in PLCs?

Communication errors can be caused by faulty cables, incorrect configurations, electromagnetic interference (EMI), or issues with network hardware.

What are CPU faults and how do they affect PLC operation?

CPU faults occur when the PLC's central processing unit encounters an error, such as

• a software bug,
• hardware failure,
• or overheating.

These faults can halt the PLC's operation and require troubleshooting or hardware replacement.

How can memory errors impact a PLC system?

Memory errors, such as corruption or insufficient memory can prevent the PLC from executing its program correctly.

What steps should I take if my PLC program has errors?

To address program errors,

• review the program code for syntax and logical errors,
• test the program in a simulation environment,
• ensure all variables and functions are correctly defined and used.

What might cause power supply issues in a PLC?

Power supply issues can be caused by voltage fluctuations, power surges, or a failing power supply unit.
